Detailed introduction of Wickon furnace temperature tester
Detailed introduction to the WICKONQ series furnace temperature tester
1、 Summary
Product Name | German WICKON furnace temperature tester |

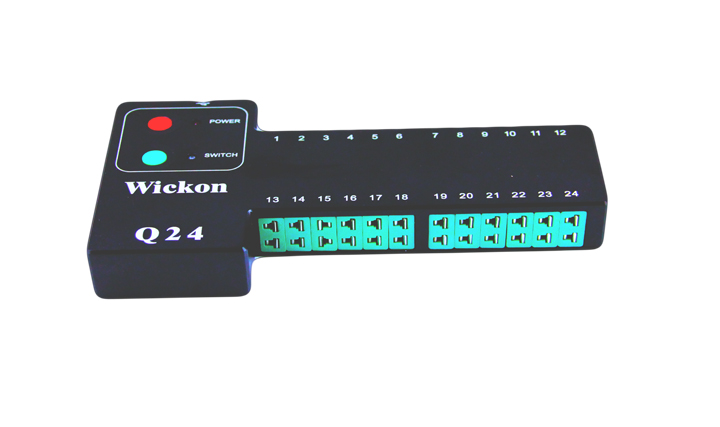

Structural appearance diagram |
|
Purpose/Function | Used for comprehensive temperature curve monitoring Process statistical analysis is conducted for metallurgy, automotive, aerospace, glass, ceramics, electronic reflow soldering, wave soldering, powder, paint, food, etc., in order to more accurately control product quality, improve work efficiency, reduce scrap rates, and achieve the goal of reducing product costs Our SURVEYYOR adjustable enhancement component can control furnace temperature stability, thereby minimizing the use of our test boards as much as possible. While saving company costs, it also improves work efficiency The temperature curve recorder WICKON also comes with a fast oven setting to help you transition to lead-free processes more efficiently. Whenever a new product or solder paste is introduced, it is necessary to optimize the reflux furnace settings - this is often a time-consuming and laborious process. The Rapid Oven Setting (ROS) from Wickon automates this process by calculating the optimal oven setting for any combination of oven, product, and target temperature curves ROS can complete tasks that experienced process engineers need hours to complete within seconds |
advantage | The advantages of WICKON are as follows: 1. Achieve the highest accuracy of ± 0.5 ℃ (full range) in electronic manufacturing. 2. The insulation box is made of black box material to ensure insulation quality and instrument temperature. Generally speaking, the outlet temperature is very low. Greatly extending the service life of the instrument. 3. By using polymer lithium batteries, it can be used continuously for more than 72 hours, not only saving your company's battery costs, but also saving your company's time and minimizing resource waste. 4. The software has powerful functions, SPC analysis, and so on. 5. There is no need to test the air temperature. 6. High stability. 7. It has a considerable lifespan, and currently there are many WICKON devices that have a lifespan of over ten years. 9. Multi channel (6, 7, 10, 12, 15, 24, 32) recorders can obtain the temperature curves of the most components. 10. It can test 24 sets of data simultaneously, greatly saving testing time. 11. Direct USB communication with the PC ensures fast data downloads 12. The powerful Insight software now has the ability to measure fluctuations 13. Choose the world's smallest MINI, which is the industry's smallest appearance, largest memory, and most comprehensive top-level furnace temperature tracker 14. Software functions A) Can analyze high/low temperature, temperature time, slope calculation, rise/fall calculation, and different peaks and peak differences; B) Can calculate heat treatment parameters such as heating, holding time, cooling rate, etc; C) Can draw the temperature curve of the entire process; D) Can directly print furnace temperature uniformity test reports or output electronic test reports; E) Simulated curve function, process optimization, testing date and time F) Output of company name, product name, and note information processing G) Software clearing instrument memory data method H) Time compensation I) Temperature statistics J) The software is licensed for permanent use without the need for regular decryption, and can be upgraded for free for life to meet the needs of customers enjoying the latest and most comprehensive process analysis items K) Can continuously test 24 sets of data L) Can trace, supplement, and modify ISO-9000 file reports M) Can insert test product images N) The curve can move up, down, left, right, and can also select points for local correction The analysis column can be completed in one interface without the need to switch between multiple screens 1) Equipped with PWI judgment function, it automatically captures process deviations and clearly identifies the area where the high-temperature furnace problem is located, with a red warning mark. |
WICKON system service and warranty | Each Wickon system comes with a one-year warranty period. In addition to the warranty, we also offer annual maintenance and recalibration contracts, which include free software updates and equipment leasing to relieve your worries |
2、 Principle:
(1) Data logger
The Wickon data recorder is currently the most accurate recorder in the field of temperature measurement in the high-temperature industry. It has an accuracy of ± 0.5, a resolution of 0.01 degrees, and storage capacity of over 400000 points of readings, thus providing detailed information for deep analysis of processes. The feature of direct USB communication enables information to be transmitted from the data logger to the computer PC as quickly as possible
(2) Insulation box (special insulation box for anti scalding aviation insulation cotton is optional)
The ultra lightweight and high-efficiency insulation materials used by Wickon ensure that the insulation box can also protect the data logger during the hottest temperatures. The combination of insulation material and a very thin stainless steel shell means that the insulation box absorbs the least amount of heat from inside the furnace, but it is also very sturdy enough to withstand the most extreme usage. Used in lead-free soldering to protect recorders at high temperatures. It adopts the same insulation technology as the "black box" flight recorder on the aircraft and is enclosed in a sturdy stainless steel shell
(3) The basic principle of thermocouple temperature measurement
Solder two different materials of conductors or semiconductors A and B together to form a closed circuit. When there is a temperature difference between the two contacts of conductors A and B, a temperature difference electromotive force is generated between the two, which is called the thermoelectric effect. Thermocouples work by utilizing this effect.
(4) Insight software features
guide
All commonly used functions are based on guides, such as tolerance curves and process files. Even for quite complex analysis, the wizard can guide you step by step through the temperature curve testing process, ensuring completion of all stages of testing and saving training time.
alert
New alert features can be used to alert you when an error occurred. An alert can be set for any numerical analysis domain. If a certain value exceeds the limit, a PWI alarm will appear on the screen to enable you to quickly identify the problem.
SPC calculation of historical data
Insight software allows users to conveniently and quickly use temperature curve historical data for SPC calculations. In this way, the stability and capability of the welding process can be tested.
Detailed structure:
1: Wickon packaging box
2: Instruction manual
3: Insulation box
4: Data logger
5: High temperature gloves
6: Data cable
7: Insight software
8: Thermocouple
9: Factory calibration report
specifications
project | Content | |
Product Name | Furnace temperature curve tester | |
temperature range | -200℃--1370℃ | |
working temperature | 0-105℃ | |
Total storage capacity | 4,000,000points | |
Battery | No need for deliberate charging, automatically replenishing power, truly achieving 365 without charging. | |

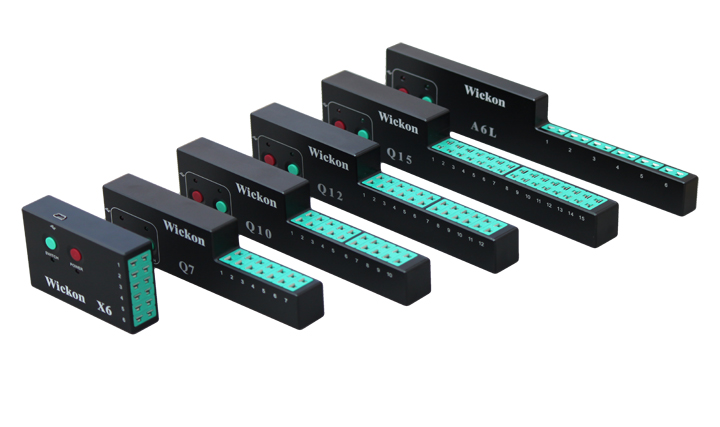

Number of channels | 6、7、10、12、15、24、32 | |
Sampling interval | 0.05s～86400s（can be set according to testing requirements） | |
Thermocouple type | K | |
accuracy | ±0.5 ℃ | |
Battery type | Rechargeable polymer lithium batteries | |
Weight of insulation box (kg) | Depending on different specifications and heat resistance time | |
Insulation box size (mm) | Different specifications and heat resistance time determine | |
WICKON - the world's most professional temperature curve testing system
Name: Wickon Q series temperature curve recorder
Brand: WICKON
Origin: Germany
The WICKON system consists of a programmable data logger, an insulation box (consisting of an efficient insulation layer enclosed in stainless steel), thermocouples (which can be attached to the product), and Insight analysis software.
The main application areas of the WICKON system include metallurgy, automotive, aerospace, glass, ceramics, electronic reflow soldering, wave soldering, powder, paint, food, and so on.
Technical specifications:
Storage capacity: 4000000 points
Sampling interval: 0.05s~86400s (can be set according to testing requirements)
Accuracy: ± 0.5 ℃
Resolution: 0.01 ℃
Maximum internal working temperature: 105 ℃
Temperature range: -200~1370 ℃ (maximum measurable 1800 ℃)
Data collection startup method: direct startup; Or conditional start (two setting methods: air start and temperature measurement duration)
Battery: Rechargeable polymer lithium battery
Thermocouple: K-type
Usage steps:
1. Settings: Reset the data logger and connect the temperature measurement probe to the product.
2. Traversing process: Place the recorder in an insulated box. Make the recorder travel through the high-temperature furnace with the product to record millions of temperature readings.
3. Analysis: Use Insight software to accurately understand what is happening inside the furnace.
Advantages:
1. Ensure that the product meets the welding specifications
2. Highlight the hot and cold spots in the furnace
3. Save time and money required for furnace setup
4. Maximize production capacity
5. Provide proof of process traceability required by ISO9000
As a global industry leader, many of WICKON's clients in Germany are leaders in their respective industries, such as Siemens, Nokia, Asus, Foxconn, Tianhong, Changhong, Oriental Communication, Motorola, Henkel Loctite, Weichuangli, Global Instruments, Delta, TCL, Wenda Electric, BYD, OFI Group, Baochen Group, Shandong Jianzhu University, Chongqing University of Science and Technology Panzhihua College, Central South University, Hunan University of Technology, Hunan Metallurgical University, Anhui University of Technology, Wuhan University of Science and Technology, Inner Mongolia University of Science and Technology, Xi'an University of Architecture and Technology, Beijing University of Science and Technology East, Liaoning University of Technology, Capital University of Technology, and so on
