Combination usage of furnace temperature tester and software

The furnace temperature tester can perform complete high-temperature curve mapping and measurement, and is the most durable measuring equipment in the industry. No need for dragging, record the entire process, and perform a nine point furnace temperature uniformity test. Wickon data

The recorder features up to 400000 readings, excellent accuracy, and unparalleled features: programmable trigger, measurement up to 1371 ℃, machined casing, and up to 20 channels

The channel. Paired with a sturdy stainless steel insulation box, it can withstand the harshest environments. And Insight software can be used to analyze data, which is an unparalleled combination. Also provide actual

Collect data to achieve consistency measurement.

1. Insight software: The standard for surveying and mapping software. Quickly convert and compile the data collected by the recorder into useful information, providing you with the analysis you need in real-time. The installation wizard ensures completion

Reduce training and setup time for all surveying and mapping steps. Use alarm features to alert you of potential faults that may occur. A simple table that allows you to "mine" the details of various parameters

Analyze the information in detail.

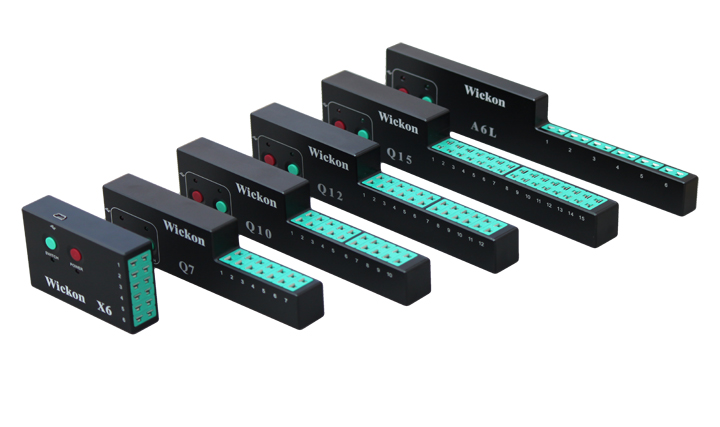

2. Wickon files are compatible with most hardware, and Insight software provides seamless integration with the latest surveying and mapping technologies. Data logger: The Q series provides high accuracy and telemetry. This record

The characteristics of the device include 8 or 10 channels, large capacity memory, extraordinary accuracy, and excellent electrical noise suppression ability. This data logger is currently the most reliable, durable, and

The most flexible recorder. You can even program the recorder to change the sampling interval at different stages of the process to obtain the more accurate data you need· 130000 data readings·

The sampling interval is 0.1S, with an accuracy of ± 0.3 ℃/. 5 ℉, and a programmable time interval. X series: Data points doubled, accuracy doubled, but height still less than 12.7mm

(0.5 in)· 6 channels, USB connection, 18000 data points/channels, expandable telemetry module.

3. Insulation box: for optimal protection and versatility, our insulation box is capable of withstanding water quenching and extreme temperatures when the process involves water quenching. Wickon offers a wide variety of insulation boxes.

Can be used in various high-temperature furnaces and applications. From a 40mm (1.6in) high insulation box to a heavyweight insulation box capable of withstanding high temperatures of 800 ℃ (1475 ℉) for 20 hours, all insulation boxes are of high quality

Stainless steel casing. Most insulation boxes have "black box" phase change heat sinks to provide additional protection, while other insulation boxes rely on phase controlled evaporation combined with ceramic insulation. 4000 series

Column: Sturdy quality and affordable. Two level protection, integrating heat sink and microporous insulation. 4900 series: mapping of heat treatment temperature curves up to 1000 ℃ (1832 ℉). 310 stainless

Steel and Floating Plate Technology minimize the deformation of insulation boxes in harsh environments. 4500/4600 series: measurement solutions for high-temperature furnaces up to 1200 ℃ (2192 ℉)

Resolution. The design suitable for vacuum furnaces combines high-performance metal processing, insulation, and gas cooling protection. Reheating insulation box for flat plates and steel billets: can withstand high temperatures for a long time. Uniquely none

The second evaporative water jacket is filled with composite insulation around and placed in a high-quality alloy bracket, which can protect the data recorder for up to 8 hours under high temperature conditions up to 1248 ℃. Aluminum brazing

(CAB) Insulation box: Regularly measure the temperature curve of the vacuum furnace without any problems caused by exhaust. Thermal protection system for quenching and time hardening applications: Built in waterproof and insulated box for the entire process

The system can pass through the entire quenching process, updating the protective ability of the aging process. Customized insulation box design: Wickon designs and produces professional insulation boxes suitable for special applications, including

Including vacuum carburization, long-term bright annealing, and circular rotating insulation box for pipe heat treatment.
